    Cushioned Tie Rod Cylinders

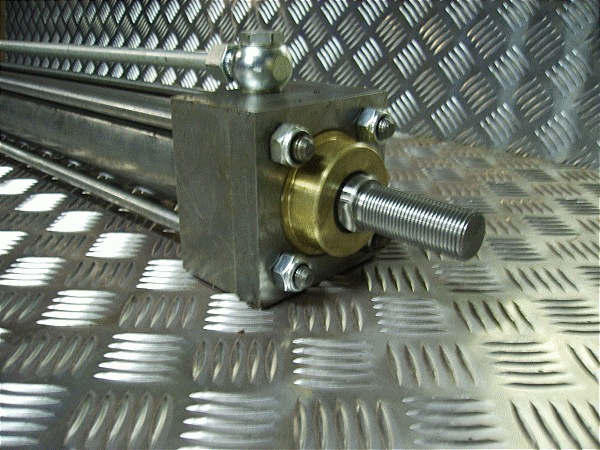

These rams are unique from others in that their oil feed is via ports on the end of the trunnion mounts allowing for a more compact installation.



Available in 50, 60 and 76mm bore with stroke and rod mounting to customers specification.





The cushion functions by closing off the inner exhaust port, trapping the oil and developing a backpressure against the advancing piston which slows, or cushions, the travel speed.
As the piston approaches the cushioned end of the cylinder, the exhaust flow is closed off by a bushing or plunger which enters the close fitting cushion cavity of the end cap.

The rate of effective cushioning can be regulated by use of
the cushion adjusting screw.
